Enside1

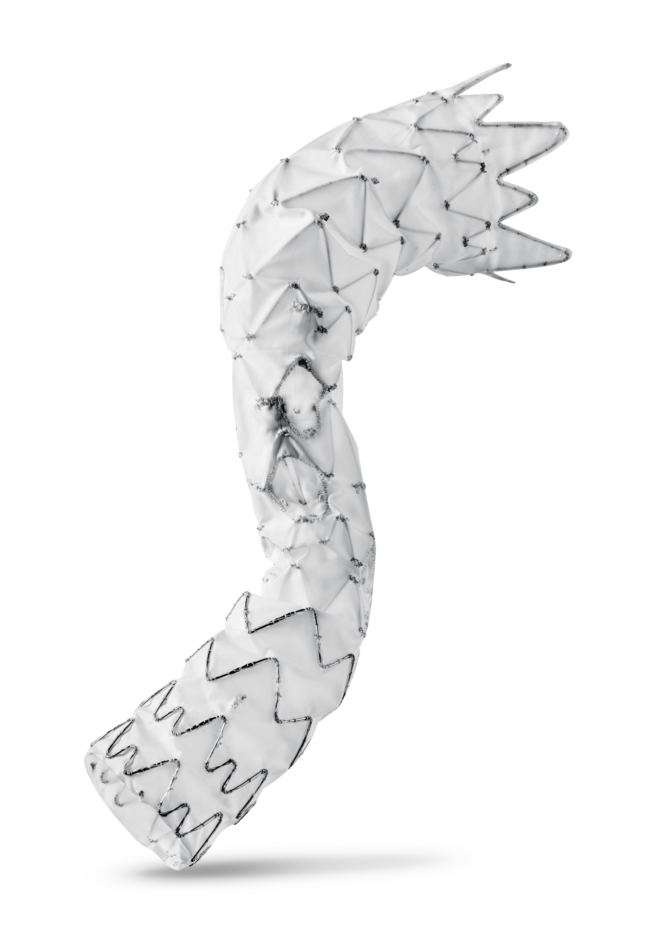

E-nside™ TAAA

MULTIBRANCH STENT GRAFT SYSTEM

Making the Revolutionary Routine.

Product Highlights

  • E-nside TAAA is the first Pre-Cannulated, inner branch-based, OFF-THE-SHELF solution for thoracoabdominal aneurysms accessible on the market.
  • Inner branches: More versatility. More anatomies. More patients.
  • Pre-cannulation is designed to minimize fluoroscopy, implantation time, and contrast media necessary to finalize the procedure.

Product Overview

1
2
3
4

1. ASYMMETRICAL COMPRESSION SPRINGS

Elite7

Designed to maintain patency of the branches as well as avoid longitudinal compressions during catheterization of the target vessels.

2. FIXATION SEAM

Enside5

The proximal fixation of the inner branches allows longitudinal stability and support during cannulation of the target vessels.

3. ENLARGED, ELLIPTICAL OUTLET

Enside4

Re-designed oval-shaped outlets to allow for greater flexibility of the covered stents.

4. MIGRATION REDUCTION

Enside6

A thin 0.1 mm PET thread added inside each inner branch designed to enhance the friction of any covered stent to help minimize migration.

Enside3
1
2
3
4

1. PROXIMAL CLASPING SYSTEM

Although fully covered, the asymmetrical proximal spring allows blood flow, as well as guide wires and catheters, to gain access to the top of stent graft even with the tip capture still in place.

Enside Call Out 1

2. FIXATION

Knurled cap and tactile marker for fixation during the procedure.

Enside Call Out 3

3. DEPLOYMENT HANDLE

Proven Squeeze-to-Release mechanism to ensure low friction, controlled deployment of the stent graft.

Enside Call Out 4

4. PRE-CANNULATION

Four 0.018“ (I.D.) tubes ensure access to the inner branches of the stent graft and by means of a through & through implantation technique provide convenient access for the covered stents.

Enside Call Out 2

Enside DS

Product Animation

Additional Resources

Explore additional resources for E-nside TAAA below. For further information or to contact a sales associate in your area, contact us.

Sizing Sheet

Implantation Poster

Educational Supplement
TAAA Treatment with Extra Design Engineering and E-nside

Feature Technology: Inner-B Evaluating the E-nside TAAA Multibranch Stent Graft System
